At a Glance 3 levels Observation → style hypothesis → provenance
Pointed arch Strong clue, not a universal requirement
No magic angle Roof pitch has no source-backed threshold
- Record visible roof, gable, opening, siding, and trim evidence before naming a style.
- A pointed arch is strong positive evidence, but the documented Dwyer House shows that its absence does not automatically rule Gothic Revival out.
- Dates, designers, original fabric, and alteration sequences require records or physical investigation; the curb can support only a provisional style reading.
A pointed arch is the most recognizable Gothic Revival signal in the Pennsylvania Historical and Museum Commission’s field guide. Yet the National Register calls Kentucky’s Dwyer House Gothic Revival even though its windows are rectangular and its porch uses Doric columns. That apparent contradiction is the useful part: a feature can support a style identification without being mandatory, and a style identification still does not prove when a feature was built or who designed it.
The safest way to read an American Gothic Revival house is to make three separate judgments. First record what is visible. Then decide which style the combination suggests. Only after that should documents, historic photographs or physical investigation be used to make claims about date, authorship and alterations.
3 levels of evidence: observation, style hypothesis, provenance
0 documented magic roof angles that make a house Gothic
4 houses below that break a one-feature checklist
First decide how much the evidence can prove
A sidewalk view is good at describing form. You can see whether the roof is steep or relatively low, whether gables face the street, whether openings are pointed or rectangular, whether siding runs vertically or horizontally, and whether the gable edges carry vergeboards, finials or other sawn trim. Those are observations.
Several observations working together can support a style hypothesis. Pointed openings, steep front-facing gables, decorative vergeboards and an intentionally vertical or picturesque silhouette make Gothic Revival a strong possibility. A simpler house may retain only part of that vocabulary. The PHMC guide itself distinguishes ornate high-style buildings from vernacular examples with only a few Gothic details.
Provenance is different. A curbside view cannot establish that the trim is original, that a named architect supplied the design, that an addition dates to a particular decade or that a house directly copied a Downing or Davis pattern. Those claims need records. Even National Register forms can contain internal conflicts, so a date in a summary box should be checked against the narrative and the evidence cited there.
| Evidence level | What you can say | What would go too far |
| Observation | “The facade has three front gables, rectangular sash windows and horizontal lap siding.” | “The windows were always rectangular.” |
| Style hypothesis | “The combined vertical massing and Gothic detail support a simplified Gothic Revival reading.” | “One pointed window proves the whole house is Gothic Revival.” |
| Provenance | “The nomination dates the original section to about 1860 and describes a later ell.” | “The ell is later because it looks slightly different from the street.” |
The pointed arch is a strong clue, not a veto
The PHMC field guide calls the pointed arch the style’s most commonly identifiable feature. It may appear in a window, door, porch, dormer or gable ornament. Steep roofs, front-facing gables, vergeboards, finials, decorative window crowns and Carpenter Gothic board-and-batten siding add weight to the identification.
But absence matters differently from presence. A pointed opening is strong positive evidence; its absence is not an automatic rejection. The Dwyer House nomination describes a circa-1860 farmhouse with three front gables, wood lap siding, two-over-two rectangular windows, a Doric-columned porch and a front door with Carpenter Gothic influence. The nomination calls the result a simplified rural Gothic Revival house that adapts stylistic ideals to a modest form.
The same caution applies to siding. PHMC treats vertical board-and-batten as distinctive to Carpenter Gothic, but the Strevell House nomination calls board-and-batten “common but not necessary.” Strevell is classified as Carpenter Gothic while carrying six-inch horizontal tapered siding nailed directly to the studs. A useful field guide has to preserve that disagreement instead of inventing a rule that every recognized example obeys.
Four houses show why the checklist keeps failing
| House | What the street can teach | What the record adds |
| Roseland Cottage, Connecticut | Board-and-batten walls, steep pointed gables, paired ornamental chimneys, vergeboards, pinnacles, tracery and a strongly vertical silhouette form a coherent high-style composition. | Joseph C. Wells’s drawings and specifications secure the attribution. The house was commissioned in 1845 and built in 1846; later work included a porte-cochere, an extended service ell and replacement roof materials. |
| Dwyer House, Kentucky | Three front gables provide the Gothic pull even though the windows are rectangular, the siding is horizontal and the porch columns are Doric. | The nomination classifies it as a simplified rural Gothic Revival house and dates the rear two-story ell to about 1880. The facade has no ghost lines indicating a differently sized earlier porch. |
| Strevell House, Illinois | Scroll-sawn drop-pendant bargeboards, finial mini-spires, window hoods and asymmetrical gables make the Carpenter Gothic hypothesis strong despite horizontal siding and rounded door tops. | The nomination dates the first section to 1855, but its summary gives about 1865 for the addition while the narrative says the addition existed before Abraham Lincoln’s 1860 visit. The visible style cannot settle that conflict. |

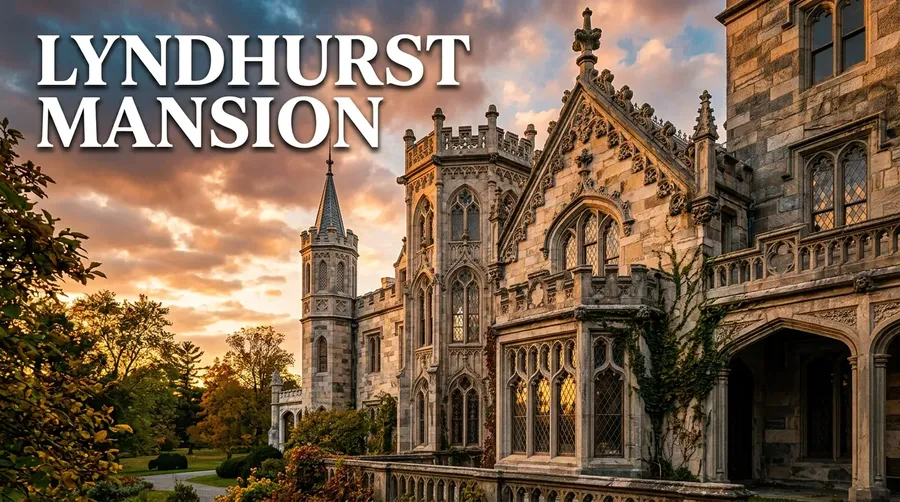

| Lyndhurst, New York | Stone construction, towers, asymmetry and a complete picturesque estate composition show why Gothic Revival cannot be reduced to wooden “gingerbread.” | The Library of Congress credits Alexander Jackson Davis with the 1838 design and records subsequent work in 1864. What appears to be one Gothic mansion is a documented multi-phase design. |
Roseland also shows what the pattern-book movement was trying to transmit. The house, curved approach, Gothic outbuildings and landscape were treated as a connected design rather than a box decorated with medieval parts. The National Register nomination says the property may be the most complete surviving American expression of Andrew Jackson Downing’s ideals of architecture and landscape design. Pattern books supplied plans and details, but they also promoted a way of composing a country house in its setting.
A curbside test that leaves room for uncertainty
Start with the whole form. Record the roof and gables, but do not use an invented angle threshold. “Steeply pitched” is a comparative description in the preservation sources, not a measured rule. Then record the Gothic vocabulary: pointed openings, vergeboards, finials, window hoods, tracery, battlements, board-and-batten or other details that make the vertical or medieval reference explicit.
Next ask whether those elements form a coherent composition. Roseland’s walls, roof, openings, trim, chimneys and site reinforce one another. Dwyer is coherent in a different way: its three-gable facade carries the style while rectangular windows and Doric columns reveal a rural hybrid. A single sawn board on an otherwise conventional later house deserves a weaker conclusion. Gothic Revival details were also mixed with other Victorian-era styles, so “gingerbread” is not a style verdict.
Use one of four provisional labels: strong Gothic Revival hypothesis when several parts of the composition agree; mixed or vernacular Gothic Revival hypothesis when a modest form uses a limited but legible Gothic vocabulary; possible Gothicized alteration when ornament appears applied but its date is unknown; or insufficient evidence when one ambiguous feature is doing all the work.
The third label must remain provisional. Strevell’s nomination records exact replicas replacing some rotted finial spires, a reminder that a coherent historic appearance may combine original and replacement fabric. Ghost lines, nail types, foundations, framing and historic photographs can help map building phases, but most of that evidence is unavailable from a public sidewalk. The honest result may be “Gothic-looking detail, construction sequence unverified.”
What the style label should—and should not—do
A style label is useful when it organizes visible evidence. It should tell us why three gables, a pointed opening and a carved vergeboard belong in the same visual argument. It becomes misleading when it quietly turns into a claim about an architect, an exact date or untouched original fabric.
The strongest field judgment is therefore not the most confident one. It is the one that stops at the right evidence level. Roseland can support a documented high-style attribution. Dwyer can support a documented vernacular classification without pointed windows. Strevell can support a strong Carpenter Gothic reading while leaving its addition date contested. An unknown house on an unfamiliar street may support only a hypothesis—and that is still a useful, accurate result.
