The U.S. Capitol dome is not stone. Its classical silhouette is a painted, double-shelled cast-iron structure. The Supreme Court looks like a load-bearing marble temple, but a steel frame carries the building behind the white marble facing. The National Gallery’s West Building appears to be one pale stone mass; its structural steel frame is clad in seven graduated shades of Tennessee marble.
The three buildings share a classical vocabulary without sharing a construction system. A pediment or Corinthian portico identifies the image. It does not tell you what holds the roof up, whether the visible stone is structural, or when the façade in front of you was made.
Three classical images, three material systems
| Building | What the eye reads | What carries the building | What forms the visible surface |
|---|
| U.S. Capitol dome | A monumental masonry dome | A double shell supported by 36 trussed cast-iron ribs on an older masonry drum | Painted cast-iron plates; the East Front below is a later gray Georgia-marble extension |
| U.S. Supreme Court | A Roman temple in white marble | A steel frame | Vermont marble on the public façade, with different marbles assigned to courtyards, halls and the Courtroom |
| National Gallery West Building | A nearly monolithic pink-white museum | A structural steel frame | Seven shades of pale pink Tennessee-marble cladding, darkest at the base and lightest near the cornice |

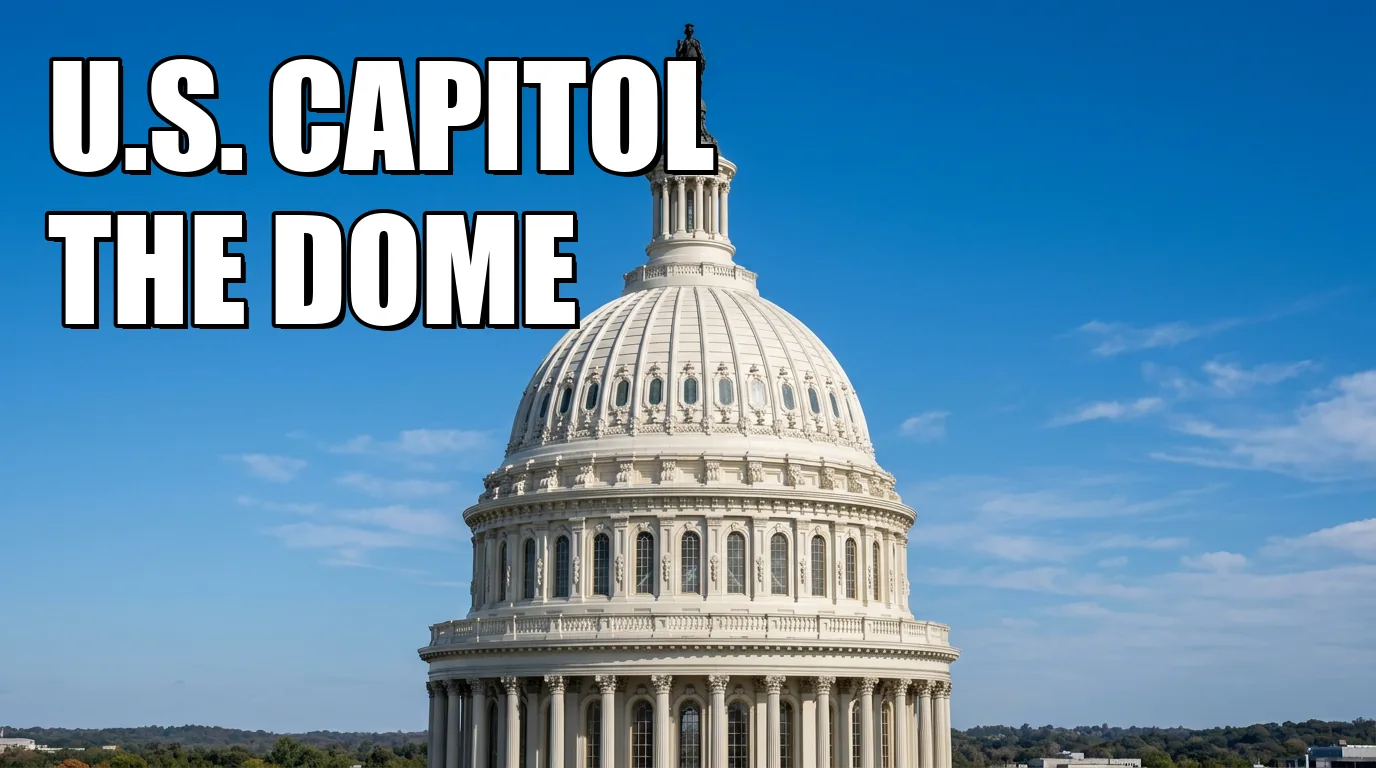

The Capitol dome uses iron to imitate masonry
Thomas U. Walter’s dome had to be much larger than the low dome Charles Bulfinch had placed over the Rotunda. Its iron base ring projects from Bulfinch’s older octagonal masonry drum, allowing the new drum and colonnade to reach a diameter roughly thirty feet wider. That cantilevered transition would not have been practical in the same form as conventional stone construction.
Above it, 36 continuous trussed ribs support inner and outer cast-iron shells. Paint unifies the exposed plates into what reads from the Mall as pale architectural mass rather than an industrial frame.
The paint is also part of the weather system. Once water reaches the iron, corrosion opens cracks and joints, which in turn admit more water. The mid-2010s dome restoration repaired breaks and corrosion before repainting the exterior. Calling the finish cosmetic misses why the classical illusion survives at all.
The East Front supplies a second date hidden inside the same view. The Capitol’s original façades were Aquia Creek sandstone painted white. The 1958–1962 East Front extension used gray Georgia marble and replicated earlier sculptural work, including the Genius of America pediment. A visitor facing east is not simply looking at a nineteenth-century building front; the visible layer also belongs to a twentieth-century expansion.
The Supreme Court’s marble maps status, not structure
Cass Gilbert’s Supreme Court Building was completed in 1935 as a steel-frame structure faced with white marble. The phrase “marble temple” is visually understandable and structurally incomplete. The marble establishes permanence, hierarchy and classical association; it is not the skeleton holding the building up.
Gilbert did not use one anonymous white stone everywhere. Vermont marble marks the public exterior. White Georgia marble lines the four interior courtyards. Creamy Alabama marble appears in corridors and entrance halls above the basement, while the Courtroom moves to Spanish marble on its walls and golden Siena marble for its columns.
Those changes do not reveal the concealed steel frame, but they do reveal the plan’s social order. Material shifts from the public face to working interiors and finally the Court chamber. The result is a hierarchy of stone finishes over a steel structure, not a single solid marble mass.
The National Gallery turns cladding into an optical gradient
John Russell Pope’s West Building, constructed from 1937 and opened in 1941, uses a structural steel frame clad in Tennessee marble. Its temple fronts and Pantheon-derived rotunda belong to a Beaux-Arts composition, but the wall’s apparent weight comes from a carefully controlled surface rather than load-bearing marble.
The cladding was sorted into seven shades. The darkest pink stone sits at the base; the courses become progressively lighter until they approach white at the cornice.
The seven-shade specification changes how the façade reads. The graded stone helps relieve the building’s monumental mass, while the hidden frame carries it. The classical image depends on twentieth-century steel and deliberate color grading.
Ask three questions before naming the style
- What carries the load? At the Capitol dome it is trussed cast iron; at the Supreme Court and National Gallery it is structural steel.
- What carries the image? Painted iron can imitate masonry, white marble can face a frame, and graded marble cladding can alter the apparent weight of a wall.
- Which date belongs to the surface? The building, structural core, extension, replacement stone and restoration campaign may all come from different periods.
Industrial structure does not make these buildings counterfeit classics; it explains how their scale became possible. Read the frame, facing and repair together. Column order alone cannot date or describe the building.
